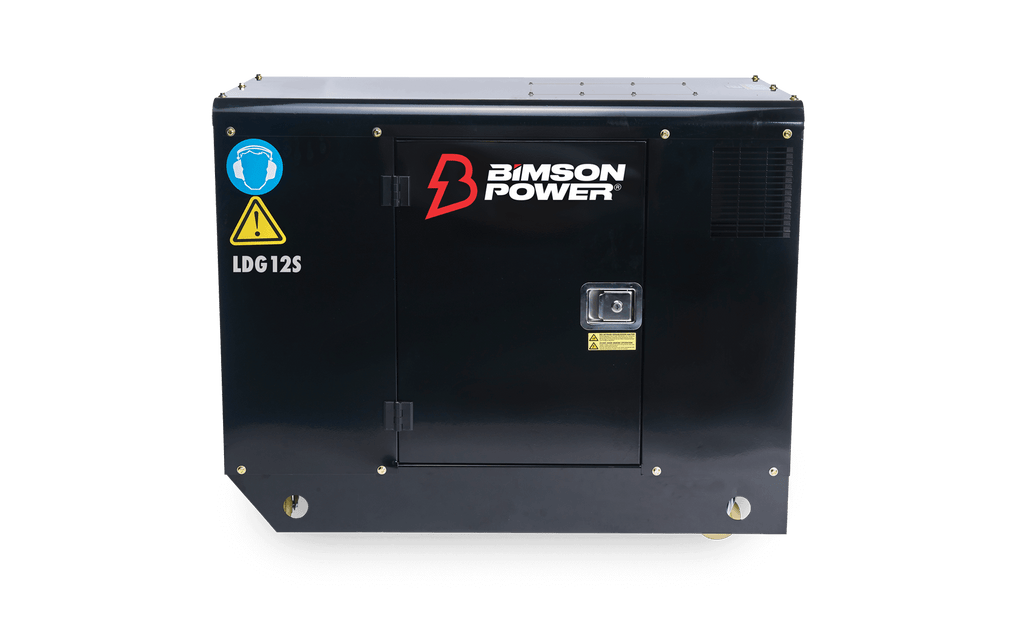

Warrior 12.5 kVa Diesel Generator

SKU: LDG12S-EU EAN: 5060423981688
No reviews

Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Champion Stockists

Features

  • Diesel powered Warrior quality 954cc engine
  • 12.5 kVa Warrior Generator with 11000 maxium watts, 10000 running watts
  • 60 Litre tank could easily achieve up to 24 hours running at around 50% load
  • Low oil shut-off sensor, this generator has a 3L oil capacity
  • Multiple outlets including 2 x 220v 16 amp / 2 x 220 32 amp outlet
  • 68 dBA noise level at 7 metres
  • Enclosed by a soundproof canopy coated with a chip resistant matt finish
  • Fitted with ATS input switch (See optional Diesel Automatic Transfer Switch)
  • Brushed copper alternator that produces a steady motor speed
  • Automatic Voltage Regulator (AVR) control system to monitor the output and protect the unit against voltage fluctuations, providing a smoother sine wave.

This new and improved Warrior model boasts increased engine power, with a brushed copper alternator within that produces a steady motor speed.

It features a Automatic Voltage Regulator (AVR) control system to monitor the output and protect the unit against voltage fluctuations, providing a smoother sine wave.

Enclosed by a soundproof canopy, coated with a chip resistant matt finish, the durable heavy-duty industrial frame provides full protection and aids portability. This silent enclosure has the added benefit of a key start facility and smooth running is further enhanced by the addition of anti-vibration mountings.

A fully fuelled 60 litre tank could easily achieve up to 24 hours running at around 50% load, making this Warrior generator ideal for all sorts of applications such as domestic supply, construction, catering and industrial use with for example power tools & lighting units. As a standby generator it is the perfect product during power cuts and outages, and is even supplied with an Automatic Transfer Switch (ATS) Input Port compatible with our ATS Panel to automatically start up the Generator when loss of power is detected & stop it when the mains supply is restored.

Fitted with 12v battery charging outlet and with 240v and 110v single phase output sockets as well as ATS Input Port for ATS panel 190102000010.

Please Note!!! Dual voltage generators will only give approx. 50-60% of the rated output on 120v

Fuel12.5
Max Watts11000
Rated Watts10000
Fueldiesel
Noise Level @ 7m (dBA)65
AC Load1 x 220v 32amp, 2 x 220v 16amp
Socket Rating32 / 16
Start TypeElectric
Engine CC954.0
Engine HP9.2
PhaseSingle
RPM3000
Power Factor1.0
Fuel Capacity (L)50.0
Oil Tank (ml)3000
Choke TYpeAutomatic
Low Oil ShutoffAutomatic
Overload ProtectionYes
AVR (Automatic Voltage Regulator)Yes
Fuel GaugeYes
VoltmeterYes
WheelsIncluded
Warranty (Years)2
CertificationCE, GS, ISO9001-2000, TUV
Weight (kg)295.0
Dimensions mm (HxLxW)890 x 1160 x 650

What's in the box

  • Warrior 12.5 kVa Diesel Generator
  • Operating manual
Warrior 12.5 kVa Diesel Generator User Manual Download
Warrior 12.5 kVa Diesel Generator Technical Drawing Download
Warrior 12.5 kVa Diesel Generator Brochure Download

Use this guide to get an approximation of the wattage required to run your equipment.

Only add Watts together if you plan on using the products at the same time. For a more in-depth wattage review, use our handy Wattage Calculator.

HOME APPLIANCES
Machine Power in Watts Starting Coefficient
Coffee Maker 750-1050 1
Deep Freeze 90-400 3+
Fryer 1800-2000 1
Grill 1000-2500 1
Hair Dryer 1800-2200 1
Microwave Oven 1200-1600 2
Mixer 300-700 1
Oven 1800-3000 1
Refrigerator 50-250 3
Steam Iron 1400-2260 1
Toaster 850-1150 1
Tumble Dryer 1200-2500 1
Vacuum Cleaner 700-1800 1
Washing Machine 2100-2400 1.5
LIGHTING - TV - HIFI - COMPUTER
Machine Power in Watts Starting Coefficient
Desk Lamp 50-150 1
Radio 50-150 1
TV 100-350 1
WORKSHOP TOOLS
Machine Power in Watts Starting Coefficient
Angle Grinder 500-900 2
Cement Mixer 500-850 3
Circular Saw 1000-1600 1.5
Compressor 1200-2500 3+
Drill 500-1100 1
Finishing Sander 135-350 1
Grinder 120-400 1.5
Hammer Drill 600-800 1
High Pressure Washer 1200-3000 3
Hot Air Gun 1600-2000 1
Jig Saw 350-750 1
Orbital Sander 300-450 1
Peeling Machine 1800-2000 1
Planer 470-750 1
Router 800-1300 1
Spray Gun 95-750 1
GARDEN TOOLS
Machine Power in Watts Starting Coefficient
Chain Saw 1400-1800 2
Hedge Trimmer 400-800 2
Lawn Mower 300-1600 2
Shredder 700-2500 2
String Trimmer 200-600 2
OTHER
Machine Power in Watts Starting Coefficient
Air-conditioner 500-2500 3+
Heating 1000-1800 1



2 Year Warranty

We at Warrior understand the importance of warranty for service & repair, we are now offering a standard 2 Year (Warrior Diesel Generators) without the need for registering your purchase. We still have the option for product registration for customer who still would like to use the website and to keep in touch with ourselves.

Please view the limitations below and read the full T&C’s about the warranty offered on a particular product.

All we require is the either a copy of the original proof of purchase or an invoice supplied from retailer at the time of purchase to enable the claim to be raised. Please keep your proof of purchase safe for the duration of your terms, in the unfortunate event you need our technical support we will ask for this to be provided on each claim, NO proof of purchase any warranty claim will be delayed or rejected.

Repair / Replacement Warranty

Warrior branded diesel generators warrants to the original purchaser up to 2 Years for domestic usage that the mechanical and electrical components will be free of defects in material and workmanship for a period of Year One (1) [Parts and Labour] Year Two (2) [Parts Only] from the original date of purchase or 1000 hours which ever comes first.

Industrial & Commercial Use One Year (1) [Parts and Labour] or 500 hours which ever comes first.

Transportation charges on any product submitted for repair or replacement under this warranty are the sole responsibility of the purchaser. This warranty only applies to the original purchaser and is not transferable.

Warranty Exclusions

This warranty DOES NOT cover the following:

Normal Wear

Your product needs periodic parts and service to perform well. This warranty does not cover repair when normal use has exhausted the life of a part or the equipment as a whole.

Installation, Use and Maintenance

This warranty will not apply to parts or labour if your product is deemed to have been misused, neglected, involved in an accident, abused, overloaded beyond the generator’s limits, modified, installed improperly or connected incorrectly to any electrical component or system. Normal maintenance is not covered by this warranty.

Other Exclusions

This warranty excludes:

  • cosmetic defects such as paint, decals, etc.,
  • worn parts including piston & rings, spark plugs, filters
  • accessory parts including wheels & recoil assemblies
  • failures due to acts of God and other force majeure events beyond the manufacturer’s control
  • problems caused by parts that are not original Warrior Power Equipment parts
  • alteration or modification(s) made by any party other than the manufacturer including exhaust extension and filtration systems.
  • all hoses plastic or rubber, reducing valves and regulators
  • any third party electrical equipment


12v Battery

  • All batteries supplied Over 1 Year Old.

Suitable Transfer Switch

Any MTS (Manual Transfer) & ATS (Automatic Transfer) systems other that ones supplied by ourselves under WARRIOR or Warrior will not be considered suitable and will invalidate all warranties given. Please contact us direct before installing any Transfer system.

Limits of Implied Warranty and Consequential Damage

Winch Solutions Ltd (CG) disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim costs by anyone using this product.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

A unit provided as an exchange will be subject to the warranty of the original unit. The length of the warranty governing the exchanged unit will remain calculated by reference to the purchase date of the original unit. This warranty gives you certain legal rights which may change from country to country. Your country may also have other rights you may be entitled to that are not listed within this warranty.
